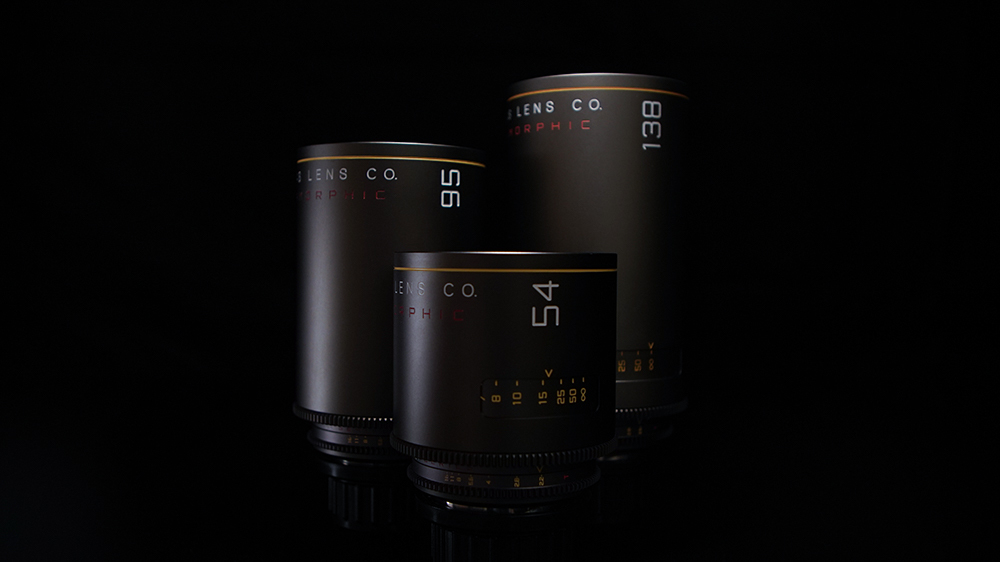

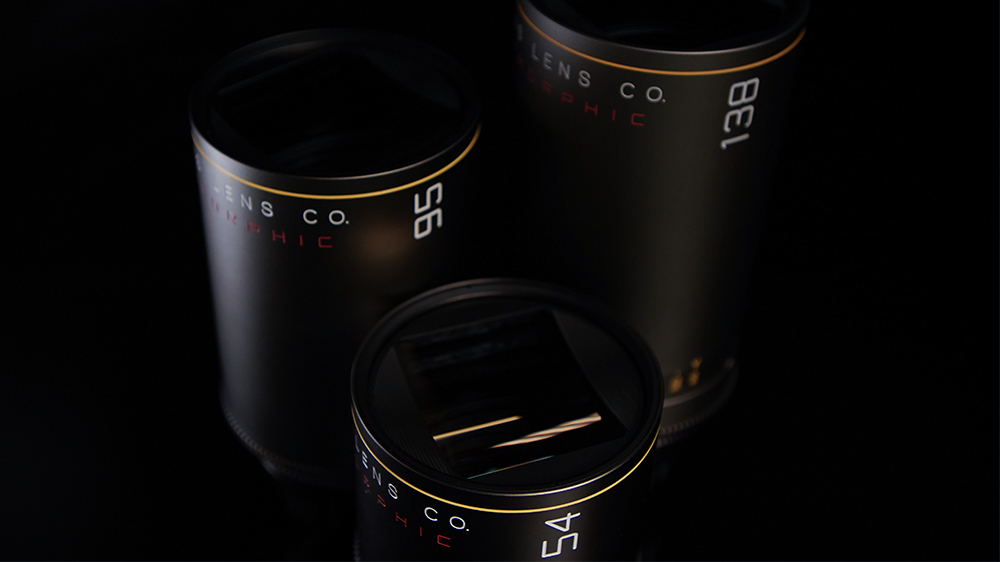

The Atlas Mercury Series lenses are 1.5x full-frame anamorphic lenses designed to deliver exceptional optical performance with a vintage character. They offer features like golden lens flares, excellent close-focus capabilities, near-zero chromatic aberration, and a unique geometric optical personality. These lightweight, compact lenses are ideal for a range of filming conditions, supporting various delivery aspects with enhanced bokeh and barrel distortion. Available in three focal lengths (36mm, 42mm, and 72mm) and at half the size and weight of typical anamorphic lenses they provide versatility and a cinematic quality for any situation.
Focal Length | Aperture Range | Min Focus | Weight | Length | Front Diameter | Sensor Coverage | Field of View | Flange System |
---|---|---|---|---|---|---|---|---|
36mm | T2.2 - T16 | 1.5 ft / .46 m | 2.7 lbs / 1.2 kg | 4.9 in / 12.6cm | 95mm | Full-Frame (36.7mm x 25.54mm) | 88º | PL Mount |
42mm | T2.2 - T16 | 2.0 ft / .56 m | 2.3 lbs / 1.1 kg | 4.4 in / 11.2cm | 95mm | Full-Frame | 78º | PL Mount |
72mm | T2.2 - T16 | 3.0 ft / .91 m | 3.6 lbs / 1.6 kg | 6.3 in / 16.2cm | 95mm | Full-Frame | 44º | PL Mount |
