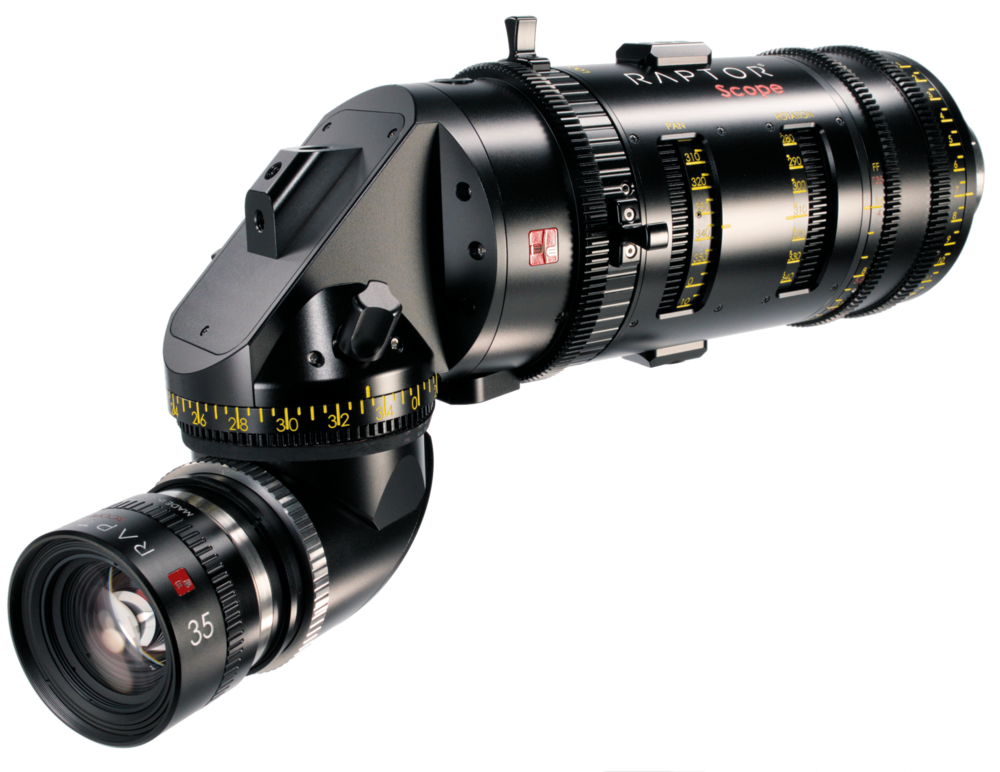

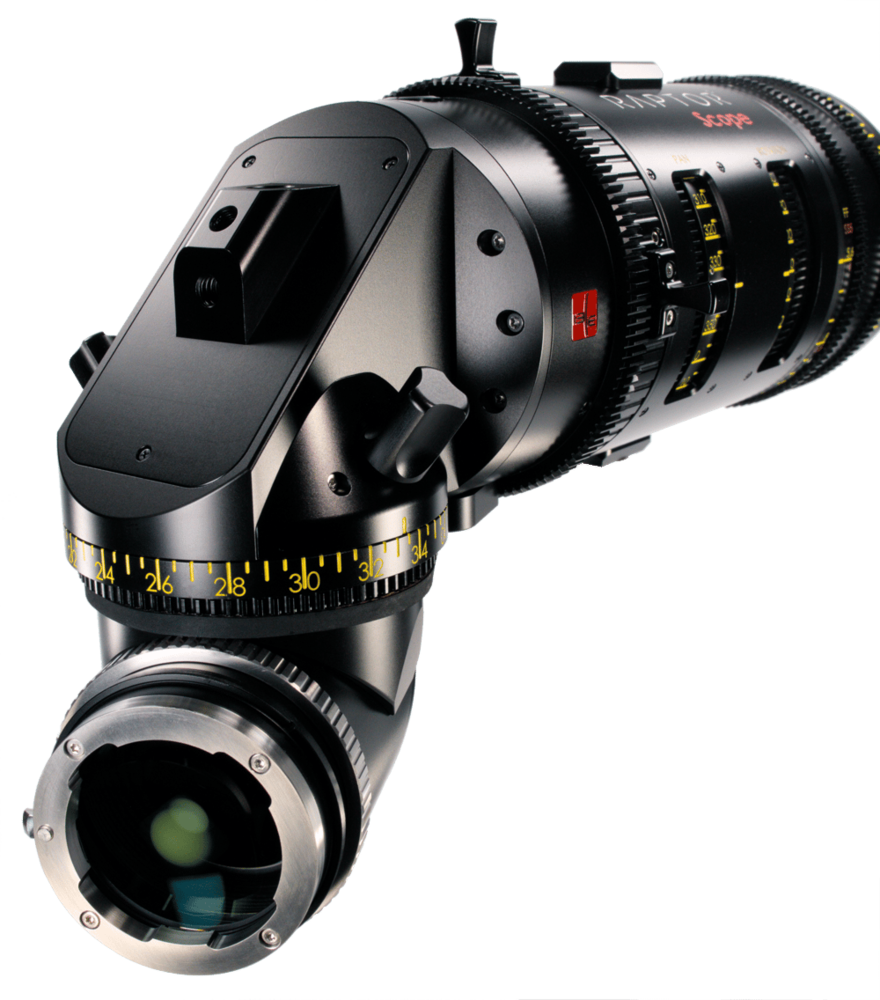

In the field of high-end optics, the Raptor Scope stands out as a remarkable achievement in precision engineering and cutting-edge design. Its high-definition optical system ensures that every scene observed is rendered with remarkable accuracy and vividness in a Full Frame image coverage (44mm).
Built to endure the hardest environments, the Raptor Scope is crafted from premium materials that guarantee durability and reliability. With its compact design and intuitive controls, this Scope ensures effortless handling and operation, allowing users to focus on the observation without distractions.

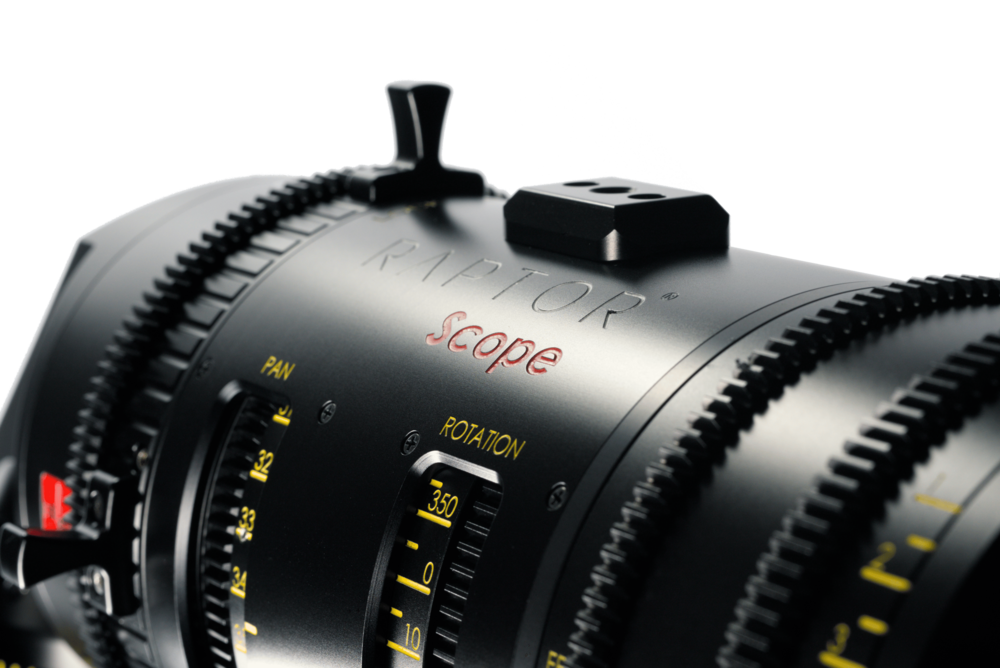

The image rotation compensator while panning the snorkel is the perfect example for this userfriendly optical tool. Also, this feature can be used for 360° rotating images avoiding the rotation of the whole camera system.
Its versatile design allows to use a PL, LPL or FZ mount to attach to the camera, as well a Rear Booster to convert it to Super35 format increasing the F/ to 4.0. For the front lenses, it comes with a M-Mount system and we also offer other mount possibilities like PL, LPL, Canon EF
With the Raptor Scope, you will be closer to the wonders of world and beyond.
Pan – Tilt – Roll: 360° (Unlimited) |
Aperture: F/5.6 at FF (44mm) - F/4.0 at S35 (35mm) |
Camera Mount: UMS PL mount |
Optional Rear Mounts: LPL, EF, FZ |
| Lenses Mount: Leica M |
Focus: Near to Camera. 180° Rotation |
Iris: Near to Camera. 90° Rotation |
Max. Image Diameter: +44 mm / +1.73'' |
Length: (Flange to Front) 32,3 cm / 12.7“ (PL to M version) |
| Weight: 4,4 kg / 9,8 lb |
Support: ¼ Tread for standard lens support |
Optional front mounts: PL, LPL |
Rear Attachment: 0.75x Booster for image coverage of 35mm. Constant lenght |

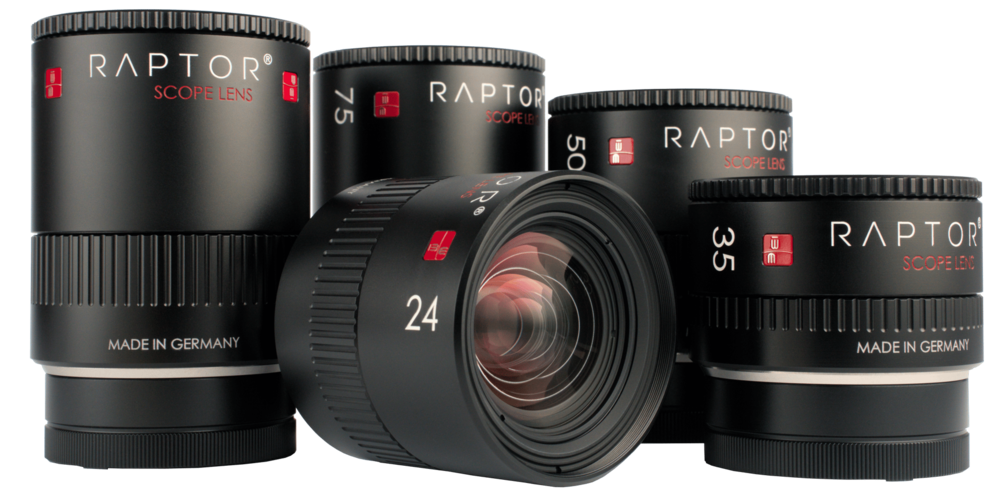

Lens set: M Mount, 24, 35, 50, 75, 90 |
