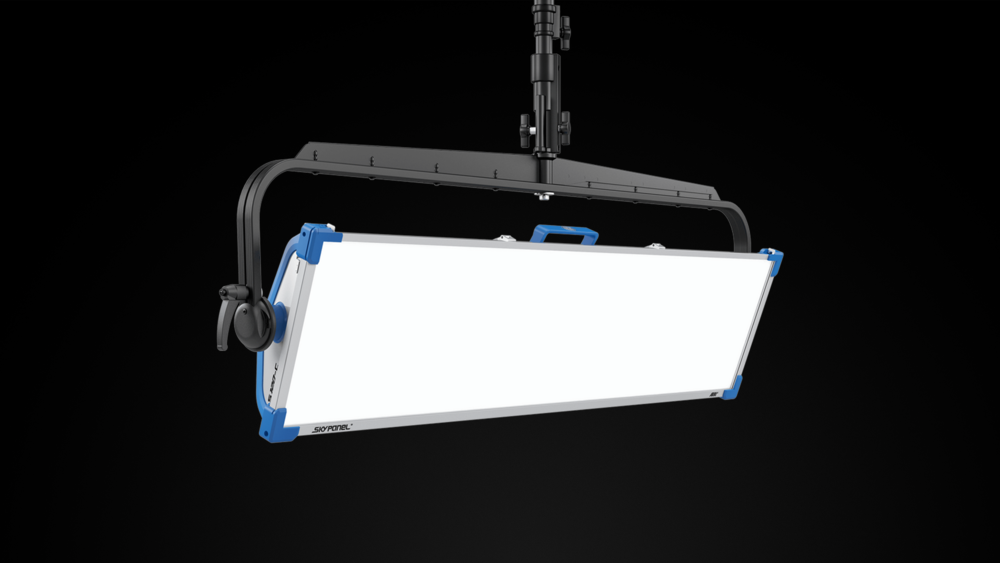

ARRI SkyPanel S120-C Light Kit

ARRI expands its acclaimed LED lineup with the SkyPanel S120-C, a wide-format soft light designed for versatility and performance. With a generous 50.8 x 11.8" surface area supported by a robust aluminum yoke, the S120-C offers broad, even illumination. It comes equipped with a Standard Medium diffuser, and also supports interchangeable thermoplastic diffusers (Lite to Heavy) for tailored softness and light wrap.

Delivering light output comparable to a 2000W tungsten soft light, the S120-C consumes just 430W at full power, making it highly efficient. Leveraging ARRI’s color science from the L7-C Fresnel, this fixture is fully color-tunable, offering a wide range from 2800K to 10,000K, plus full RGB+W color control with adjustable hue and saturation.

For chroma key setups, users can fine-tune from full minus green to full plus green, enhancing flexibility on blue or green screen stages. The fixture boasts an impressive CRI of 95 and TLCI of 90, ensuring color fidelity across applications.

All functions, including 0–100% dimming, can be controlled locally via the onboard interface or remotely through DMX, LAN, or Art-Net. A USB-A port is included for easy firmware updates via thumb drive or computer.

rentals@2dhouse.com

Package Contents

  • 1x ARRI SKYPANEL S120-C LIGHT PANEL
  • 1x ARRI SKYPANEL S120 PSU
  • 1x ARRI SKYPANEL S120 STANDARD DIFFUSION
  • 1x ARRI SKYPANEL 10' 3-PIN XLR CABLE
  • 1x ARRI SKYPANEL 10' POWERCON TRUE1 MAINS CABLE
  • 1x ARRI SKYPANEL S120 YOKE
  • 1x ARRI SKYPANEL BALLAST MOUNT BRACKET
  • 1x ARRI SKYPANEL S120-C SINGLE LIGHT CASE
Lamphead Type
LED Soft Light
Optical System
Swappaple Soft Diffusion Panel
Weight in kg / lbs net*
Manual Version: approx. 16.5 kg / 36.4 lbs
Pole Operated Version: approx. 20.5 kg / 44.2 lbs
Fixture only, incl. Diffusion: approx. 12.9 kg / 28.4 lbs
Measurements (HxWxL) incl. Pin in mm / inch*
Manual Version: 588 x 1467 x 133 mm / 23.1 x 57.7 x 5.2"
Pole Operated Version: 615 x 1439 x 133 mm / 24.2 x 56.6 x 5.2"
Measurements (HxWxL) excl. Pin in mm / inch*
Manual Version: 473 x 1467 x 133 mm / 18.6 x 57.7 x 5.2"
Pole Operated Version: 500 x 1439 x 133 mm / 19.7 x 56.6 x 5.2"
Power Consumption
400 W Maximum
Lamphead Voltage Input
48 V DC
Beam Angle
105° (Half Peak Angle)
Handling
Aluminium Yoke, High-Strength Tilt Lock / Steel Yoke, Pole Operation for Pan & Tilt / Center Mount Yoke
Mounting
28 mm Spigot (2K/Junior Pin)
Lamp Type
RGBW LED Light Engine
White Light
2,800 K to 10,000 K continuously variable correlated color temperature
'
