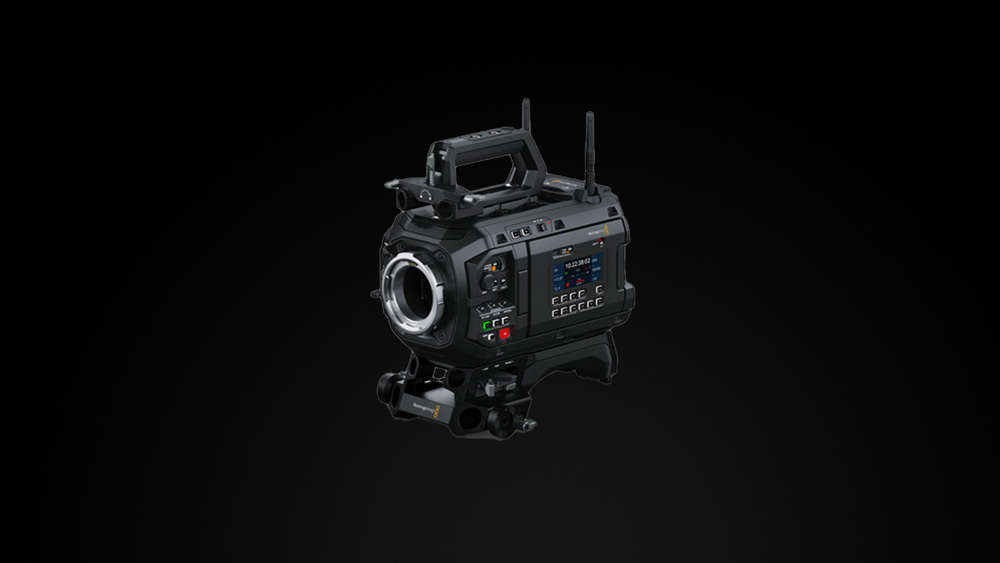

Blackmagic URSA Cine 12K

The Blackmagic URSA Cine 12k is a breakthrough in digital cinema. Featuring a large format RGBW 36 x 24mm sensor with larger photo-sites, delivering 16 stops of dynamic range.Designed for users with existing cinema accessories to build custom rigs, the URSA Cine 12K Body excludes the top handle, baseplate, power supply, battery plate, and PL mount but includes an interchangeable EF mount.

Noteworthy Attributes

  • Large-format RGBW 36 x 24mm sensor with larger photo-sites delivering 16 stops of dynamic range.
  • Built-in ND filters and industry-standard Lemo and Fischer connections for professional workflows.
  • Supports CFexpress media, high-speed 10G Ethernet, and WiFi for fast media upload and cloud syncing.
Effective Sensor Size
35.64mm x 23.32mm (Large Format)
Lens Mount
Interchangeable: LPL, PL, EF
Dynamic Range
16 Stops
Shooting Resolutions12,288 x 8040 (12K 3:2 open gate)
12,288 x 6912 (12K 16:9)
12,288 x 6480 (12K 17:9)
12,288 x 5112 (12K 2.4:1)
9648 x 8040 (12K 6:5)

9408 x 6264 (9K 3:2)
8688 x 4896 (9K 16:9)
9312 x 4896 (9K 17:9)
9312 x 3864 (9K 2.4:1)
7680 x 6408 (9K 6:5)

8192 x 5360 (8K 3:2 open gate)
8192 x 4608 (8K 16:9)
8192 x 4320 (8K 17:9)
8192 x 3408 (8K 2.4:1)
6432 x 5360 (8K 6:5)

4096 x 2680 (4K 3:2 open gate)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K 17:9)
4096 x 1704 (4K 2.4:1)
3216 x 2680 (4K 6:5)
Frame Rates
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected
High Speed Frame Rates
12K 3:2 open gate up to 80 fps
12K 17:9 up to 100 fps
12K 2.4:1 up to 120 fps
9K 3:2 Super 35 up to 100 fps
8K / 4K 3:2 open gate up to 144 fps
8K / 4K 2.4:1 up to 224 fps
Built in ND Filters
Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters.
'
