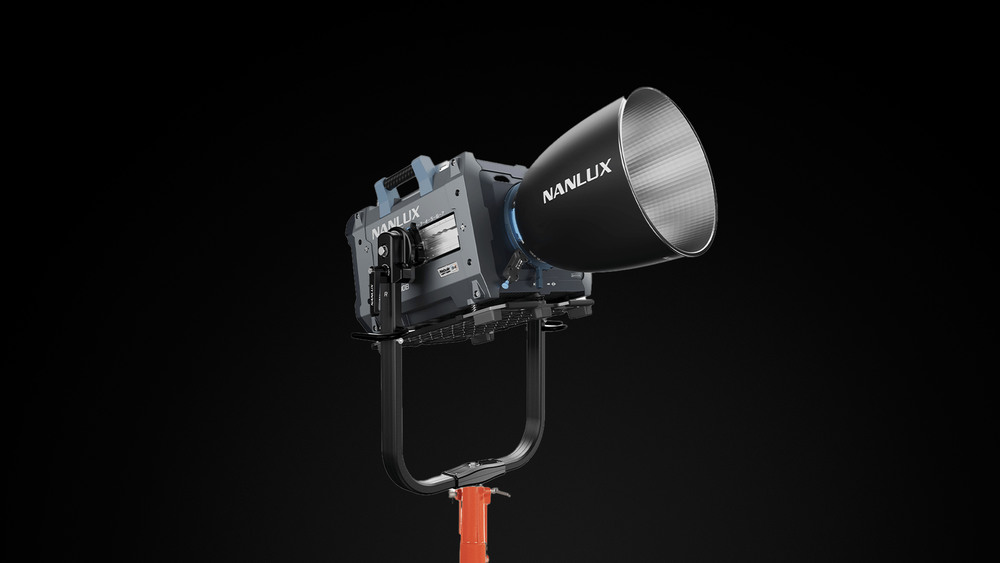

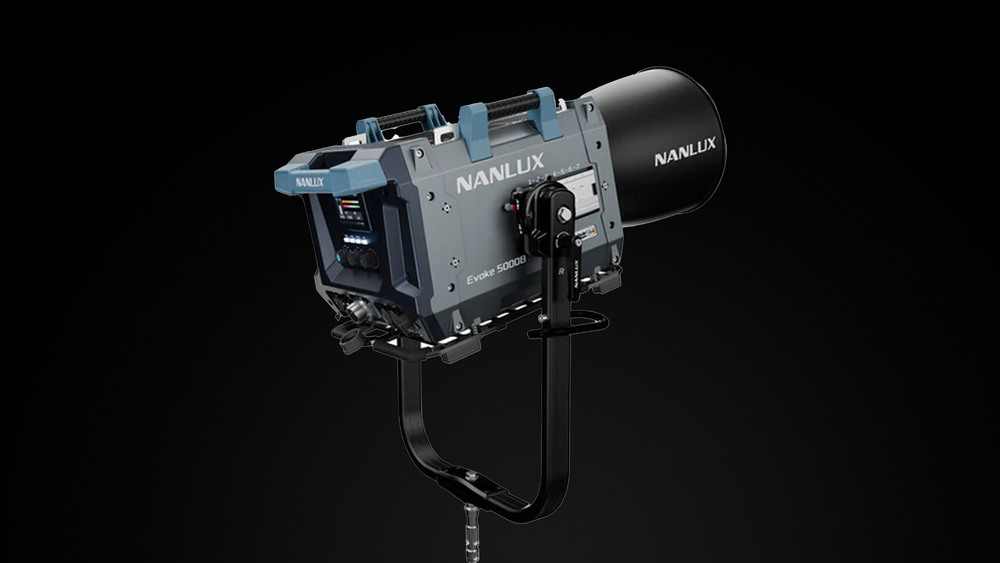

Nanlux Evoke 5000B Light Kit

The Nanlux Evoke 5000B is a powerful, bi-color LED spotlight designed for professional film and TV production. It's known for its high output, reaching a level comparable to a 9kW HMI or a 24kW tungsten light, achieved through its Nebula B4 light engine. The fixture is bi-color, offering a color temperature range of 2700K-6500K with +/- 80 green/magenta adjustment. It's also IP66-rated, making it stormproof and suitable for various weather conditions. The Evoke 5000B is an all-in-one design, meaning the lamp head, control unit, and power supply are integrated into a single unit.

Noteworthy Attributes

  • High Output: 5000W power draw with an output that rivals 9kW HMI or 24kW tungsten lights.
  • Bi-Color: 2700K-6500K color temperature range with +/- 80 green/magenta adjustment.
  • IP66 Rating: Weatherproof design for reliable performance in various conditions.
  • All-in-One Design: Integrated lamp head, control unit, and power supply.
  • Nebula B4 Light Engine: Delivers excellent light quality and efficiency.

Rental Rates

: $800 + HST

Package Contents

  • 1x NANLUX EVOKE 5000B BI-COLOUR LED LIGHT
  • 1x NANLUX EVOKE 5000B YOKE
  • 1x NANLUX EVOKE 5000B 100V-125V JOY HEAD CABLE (24FT)
  • 1x NANLUX EVOKE COB PROTECTIVE COVER
  • 1x NANLUX RF-NL-L-30-EV5000B REFLECTOR 30°
  • 1x NANLUX WIRED CONTROLLER WC-EXT
  • 1x NANLUX WIRED CONTROLLER EXTENSION CABLE (26FT)
  • 1x NANLUX WIRED CONTROLLER CARRYING CASE
  • 1x NANLUX EVOKE 5000B ROLLING CASE

rentals@2dhouse.com

Rated Power5000W (200V–240V)
5200W (100V–125V)
Input Voltage/CurrentAC100V–240V / 52A (Max) 50/60Hz
Beam Angle
95°
LED Light Engine
Nebula B4 Light Engine
CCT2700K – 6500K (G/M ±80)
CRIAverage 97
TLCIAverage 98
TM-30RfAverage 96
TM-30RgAverage 96
Dimming0-100% Stepless 0.1% From 0-100%
IP RatingIP66 (dust-tight and water-resistant)
ControlOn-board, Wire Control, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN
Special EffectsCCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/File, Bad Bulb, Firework, Explosion, Welding
DMX Dimming Curves
Linear, Exponential, Logarithmic, S-Curve, Gamma 2.2, 2.4, 2.6
Product Dimensions
Light Fixture (without COB cap): 556.7 × 457 × 420.9 mm / 21.92 × 17.99 × 16.57"

Yoke: 795.9 × 660 × 166 mm / 31.33 × 25.98 × 6.54"
Product WeightFixture (without COB cap): 43.12 kg / 95.06 lbs

Yoke: 3.42 kg / 7.53 lbs


'
