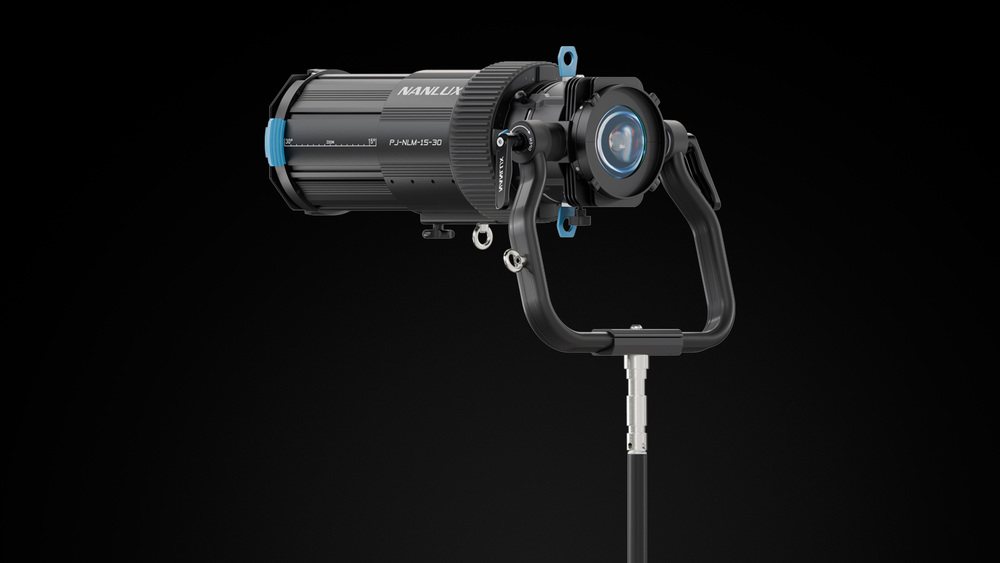

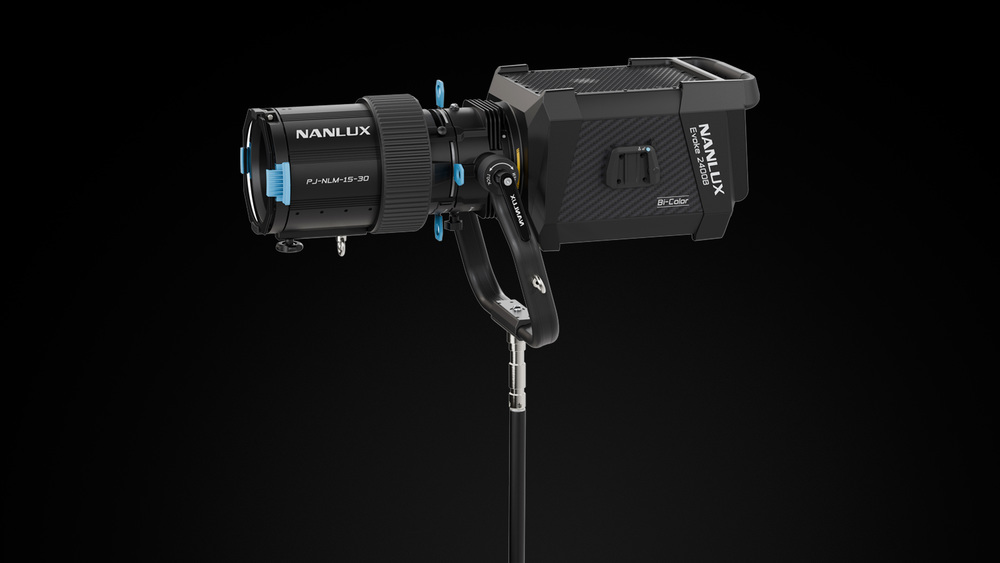

Nanlux Spotlight Mount Projection Attachment Kit (15-30°)

The NANLUX Spotlight Mount Projection Attachment Kit (15°–30°) is a professional-grade modifier designed to deliver sharp, focused light with excellent control. Ideal for shaping, cutting, and isolating light with precision, it transforms compatible NANLUX fixtures into powerful tools for theatrical lighting, product shoots, and high-end cinematic applications. With a 15°–30° zoom range, users can easily adjust beam spread while maintaining crisp edge definition.

Noteworthy Attributes

  • Adjustable Beam Angle: Zoomable 15°–30° projection range for flexible beam control
  • High-Precision Optics: Produces clean, defined edges with minimal distortion
  • 4 Built-In Shutters: Internal shutters for cutting and shaping light with accuracy
  • Gobo Holder & Gel Frame Included: Offers creative lighting effects and customization
  • Durable Construction: Built for professional use with robust materials and seamless integration with NANLUX fixtures

Rental Rates

: $250 + HST

Package Contents

  • 1x NANLUX SPOTLIGHT MOUNT PROJECTION ATTACHMENT (15°-30°)
  • 1x NANLUX MOUNT PROTECTIVE COVER
  • 1x NANLUX SPOTLIGHT MOUNT PROTECTIVE COVER
  • 1x NANLUX SPOTLIGHT GOBO HOLDER
  • 1x NANLUX SPOTLIGHT GEL HOLDER
  • 1x NANLUX GOBO "TREE"
  • 1x NANLUX GOBO "LEAF CANOPY"
  • 1x NANLUX GOBO "VENETIAN BLIND"
  • 1x NANLUX GOBO "FIREWORKS"
  • 1x NANLUX SPOTLIGHT MOUNT CARRYING CASE

rentals@2dhouse.com

Beam Angle
15-30°
MountNL Mount
Compatible with
Evoke 900C / 1200 / 1200B / 2400B / 5000B
Product Weight
NL Mount Projection Attachment 15-30°: 11.85kg / 26.12lb
Plastic Protective Cover (front cover): 0.148kg / 0.33lb
Plastic Protective Cover (back cover): 0.07kg / 0.15lb
A Size GOBO: 0.018kg × 4 / 0.04lb × 4
GOBO Holder: 0.11kg / 0.24lb
Gel Frame: 0.12kg / 0.26lb
Flight Case: 12.55kg / 27.67lb
Product Size
NL Mount Projection Attachment 15-30°:
extented at 15°: 629.5 × 392.5 × 514.7mm / 24.78 × 15.45 × 20.26"
retracted at 30°: 451.5 × 392.5 × 514.7mm / 17.78 × 15.45 × 20.26"
Plastic Protective Cover (front cover): 174.9 × 27mm / 6.89 × 1.06"
Plastic Protective Cover (back cover): 158.9 × 17mm/ 6.26 × 0.67"
A Size GOBO: 100 × 0.4mm / 3.94 × 0.02"
GOBO Holder: 257.7 × 102 × 24.4mm / 10.15 × 4.02 × 0.96"
Gel Frame: 188 × 188 × 35mm / 7.40 × 7.40 × 1.38"
Flight Case: 555 × 445 × 455mm / 21.85 × 17.52 × 17.91"
'
