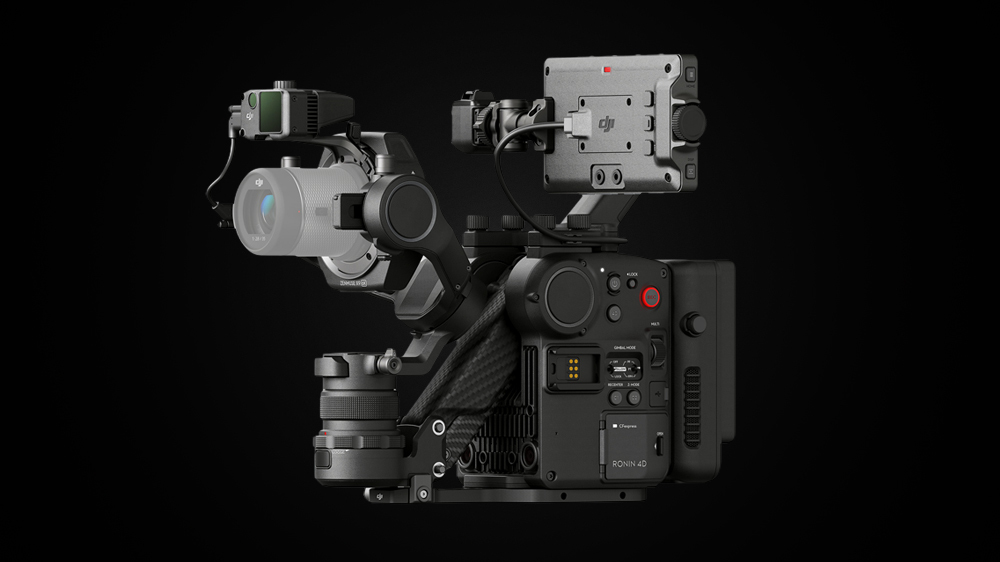

The DJI Ronin 4D Kit is an all-in-one cinema camera system that combines full-frame imaging, 4-axis stabilization, LiDAR focusing, and integrated wireless transmission in a compact production-ready platform.
Available in both 6K and 8K configurations, it gives crews the flexibility to match capture format and workflow to the needs of the shoot.
The kit includes the Ronin 4D Flex for more compact camera positioning and expanded rigging options and the DJI High-Bright Remote Monitor adds 7-inch 1500-nit monitoring plus remote viewing and full control capability.
The X9-8K supports Full-Frame recording up to 8K/75fps and 4K/120fps.
The X9-6K supports up to 6K/60fps Full-Frame and 4K/120fps in Super 35 mode only.
Both X9-8K and X9-6K heads feature built-in 9-stop ND filters (Clear through ND512), allowing fast exposure control without adding external filtration or rebalancing the system.
Daily Rental Rate: $1000 + HST for 6K DJI RONIN 4D KIT
Daily Rental Rate: $1200 + HST for 8K DJI RONIN 4D KIT
Optional accessories:
| Lens Mount | DL/Dx (DJI proprietary), E (Sony Proprietary) |
| Sensor Size | Full Frame |
| ISO Sensitivity Range | X9-8K: EI 200 to EI 6400, dual native ISO 320/1600 With Dynamic Range Expansion On: dual native ISO 800/4000 X9-6K: EI 200-12800, dual native ISO 800/5000 |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1/24 Second |
| Advertised Dynamic Range | 14+ Stops |
| Built-In ND | Mechanical Filter Wheel with Clear, 1-Stop (1/2), 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128), 8-Stop (1/256), 9-Stop (1/512) ND Filters |
| Media Compatibility | DJI ProSSD Module / CFexpress Type B [1 TB Maximum] |
| Recording Format | ZENMUSE X9-8K: Apple ProRes RAW ZENMUSE X9-6K: Apple ProRes RAW |
| DJI PROSSD 1TB Recording Format | No restriction on recording format |
| Frame Rate | ZENMUSE X9-8K: 8K (17:9 Full Frame) up to 60 fps 8K (2.39:1 Full Frame) up to 75 fps 4K (17:9 Full Frame) up to 120 fps 5.5K (17:9 Super35 Crop) up to 60 fps ZENMUSE X9-6K: 6K (17:9 Full Frame) up to 60 fps 4K (17:9 Full Frame) up to 120 fps 4K (2.39:1 Full Frame) up to 150 fps 4K (17:9 Super35 Crop) up to 60 fps |
| I/O | 1x USB-C 1x HDMI A 2.0 Output 1x 3.5mm TRS Stereo Input Jack 1x 3.5mm Stereo Output Jack EXPANTION PLATE: 1x SDI 1x TIMECODE 2x XLR(with fantom power option) |
| Battery Type | DJI TB50 |
| Load Capacity | 2.1 lb / 960 g |
