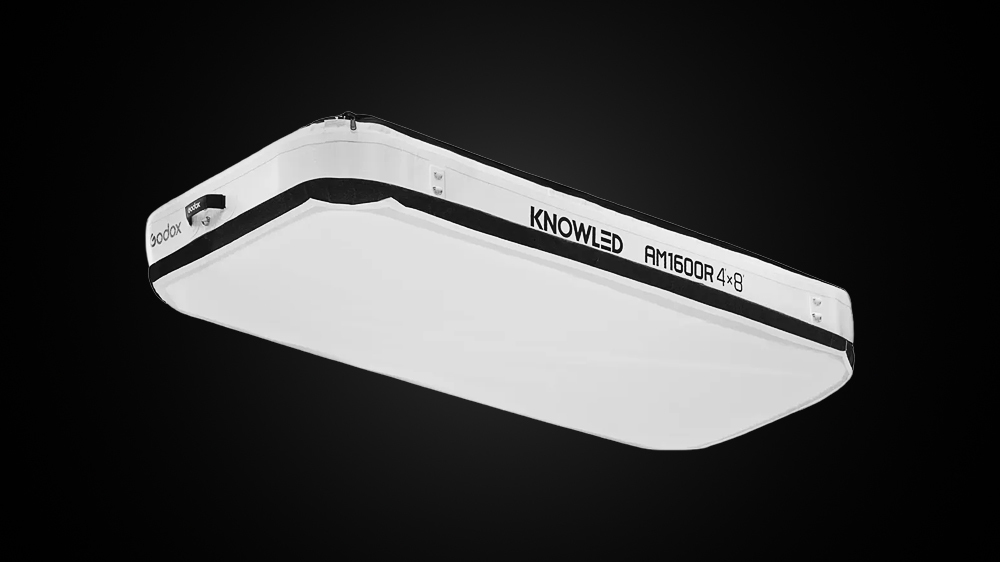

The KNOWLED AM1600R 4X8' RGB Inflatable LED Light Mat by Godox features an air-cushioned, inflatable design that enables rapid deployment, reduced rigging weight, and efficient overhead mounting for large-scale productions.
Its IP-rated structure maintains durability while delivering expansive, beautifully soft illumination across a broad surface area.
With 1600W of high-output RGB performance, wide CCT range, full HSI control, and high CRI/TLCI accuracy, it ensures precise, flicker-free results on camera. Integrated pixel control, along with DMX and advanced wireless networking options, allows dynamic effects, segmented animations, and seamless integration into professional lighting workflows.
| Fixture Dimensions | 90.6 x 43.3" / 230 x 110 cm |
| CCT Range | 1800K - 10000K |
| GM Adjust | -100% ~ 100% |
| Dimming Curves | linear, S-curve, exponential, logarithmic |
| Protection Grade | IP54 (Dust/Water-Resistant) |
| Weight | 14.8 lb (Fixture), 24.3 lb (Power Supply/Controller) |
| Input | 100-240V, 50/60Hz |
| Controlling Methods | DMX 512 controller, support RDM protocol/LumenRadio CRMX/Etherne/Art-Net&sACN protocol /Bluetooth app/ controller control |
| Controller Inputs/Outputs | 1x RJ45 Network Input 1x USB-A Power Output (5 VDC at 1.5 A) 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |
