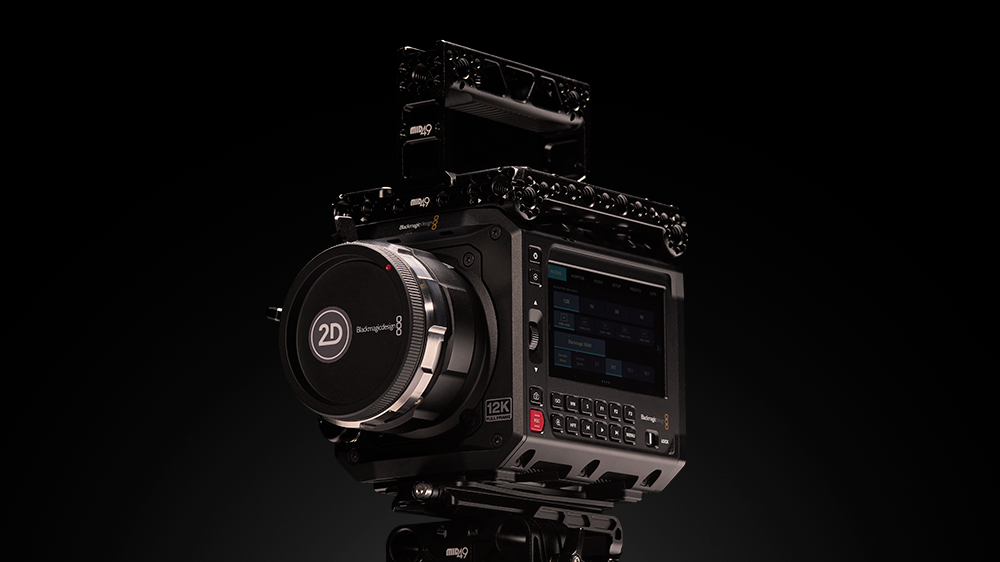

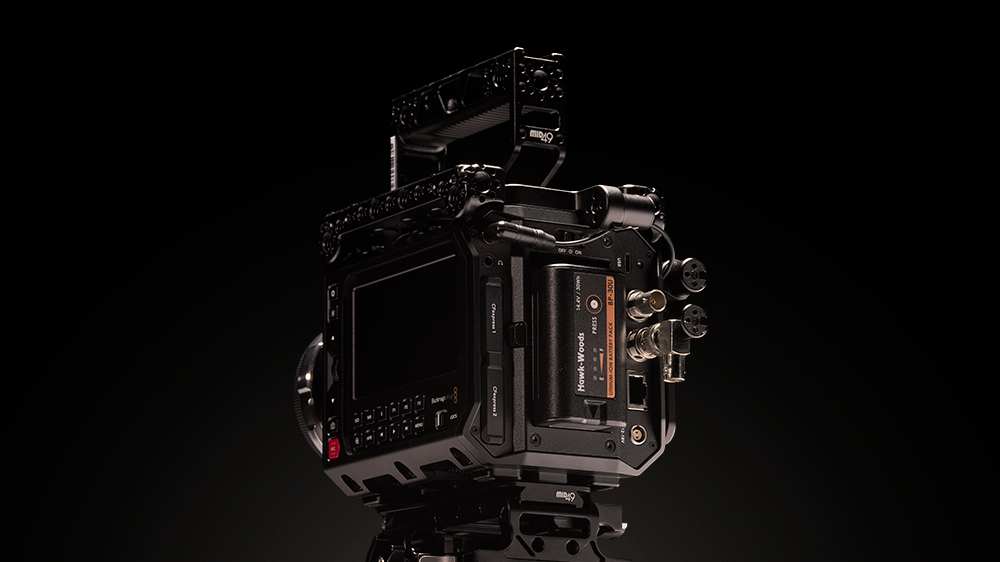

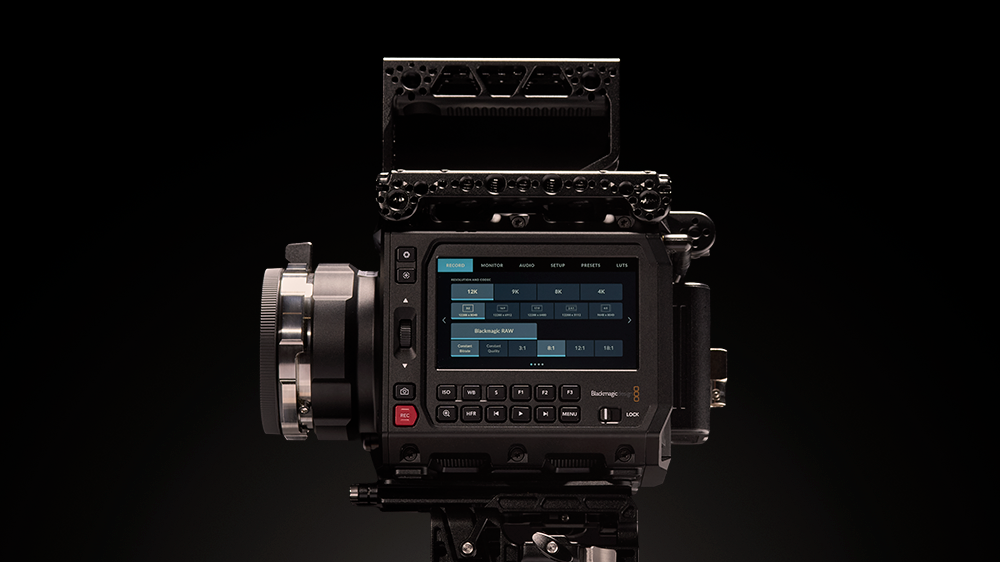

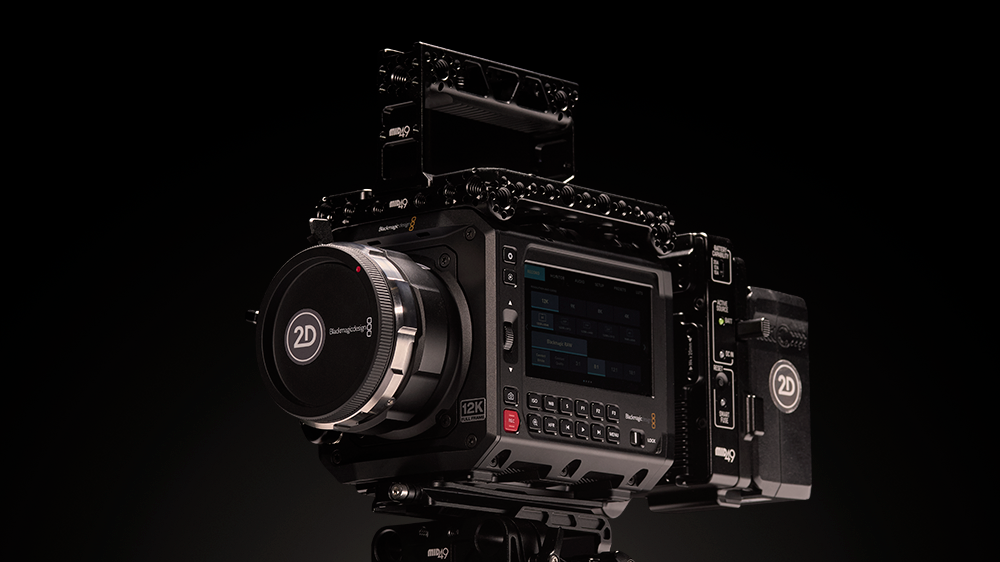

Blackmagic PYXSIS 12K PL FF

Blackmagic PYXIS 12K PL-Mount is a powerful digital cinema camera featuring a 12,288 × 8,040
full-frame RGBW sensor, up to 16 stops of dynamic range, and dual CFexpress card slots for high-speed recording. Its modular, customizable design with versatile mounting points and interchangeable side plates allows you to build the ideal rig for any production workflow.


Noteworthy Attributes

  • Large-format RGBW 36 x 24mm sensor with larger photo-sites delivering 16 stops of dynamic range.
  • In-camera downsampling 8K and 4K without crop.
  • Supports CFexpress media, high-speed 10G Ethernet, and WiFi for fast media upload and cloud syncing.

Rental Rates

: $600 + HST
: $1800 + HST


BLACK MAGIC PYXIS 12K BODY KIT

  • BLACKMAGIC PYXIS 12K CINEMA CAMERA 1
  • MID49 TOP PLATE (PYXIS) 1
  • MID49 SIDE PLATE (PYXIS) 1
  • MID49 ARCA TOP HANDLE (PYXIS) 1
  • MID49 BASELINE 15MM LW BASEPLATE (PYXIS) 1
  • MID49 BASELINE ARCA DOVETAIL (12MM) 1
  • MID49 BASELINE ARRI DOVETAIL 1
  • MID49 ARRI 3/8-16 TO ARRI ROSETTE 2
  • MID49 ARRI ROSETTE TO NATO RAIL (110MM) 2
  • BLACKMAGIC PYXIS 12K PL MOUNT 1
  • BLACKMAGIC PYXIS POWER SUPPLY 1

  • MID49 LENS SUPPORT 1/4-20 LONG 1
  • MID49 LENS SUPPORT 1/4-20 MEDIUM 1
  • MID49 LENS SUPPORT 1/4-20 SHORT 1
  • MID49 AUDIO BREAKOUT AB-9 (PYXIS) 1
  • BLACKMAGIC PYXIS 5" MONITOR1
  • BLACKMAGIC PYXIS 5" MONITOR SUN SHADE 1

  • HAWK-WOODS BP-30U BATTERY 2
  • HAWK-WOODS BP-MX2 BPU 2-CHANNEL CHARGER 1

BLACKMAGIC DESIGN PYXIS CFEXPRESS KIT

  • ANGELBIRD USB-C 3.2 CABLE (V-RAPTOR) 1
  • CFEXPRESS B CARD READER 1
  • ANGELBIRD 2TB AV PRO 1
  • CFEXPRESS TYPE B CARD 3

CORE NANO MICRO V-MOUNT KIT

  • CORE SWX GPM-X2S MINI DUAL CHARGER (V-MOUNT) 1
  • CORE SWX 98WH NANO MICRO BATTERY (V-MOUNT) 2
  • 2-PRONG AC TO IEC-C7 CABLE 1
  • MID49 POWER DISTRIBUTION BOX DB-9 (PYXIS) 1
Lens MountPL
Sensor SizeFull Frame
Effective Sensor Size
35.64mm x 23.32mm

Dynamic Range16 stops
Native ISO
800

MediaCFexpress type B

1 x 10 Gbps USB-C port for external media for Blackmagic RAW
and H.264 Proxy Recording.
Shooting Resolutions
12,288 x 8040 (12K 3:2 open gate)
12,288 x 6912 (12K 16:9)
12,288 x 6480 (12K 17:9)
12,288 x 5112 (12K 2.4:1)
9648 x 8040 (12K 6:5)

9408 x 6264 (9K 3:2)
8688 x 4896 (9K 16:9)
9312 x 4896 (9K 17:9)
9312 x 3864 (9K 2.4:1)
7680 x 6408 (9K 6:5)

8192 x 5360 (8K 3:2 open gate)
8192 x 4608 (8K 16:9)
8192 x 4320 (8K 17:9)
8192 x 3408 (8K 2.4:1)
6432 x 5360 (8K 6:5)

4096 x 2680 (4K 3:2 open gate)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K 17:9)
4096 x 1704 (4K 2.4:1)
3216 x 2680 (4K 6:5)

Frame Rate12K (3:2 open gate) up to 40 fps
12K (16:9) up to 45 fps
12K (17:9) up to 50 fps
12K (2.4:1) up to 60 fps
12K (6:5) up to 40 fps
9K (3:2 Super 35) up to 50 fps
9K (16:9 Super 35) up to 65 fps
9K (17:9 Super 35) up to 65 fps
9K (2.4:1 Super 35) up to 80 fps
9K (6:5 Super 35) up to 50 fps
8K/4K (3:2 open gate) up to 72 fps
8K/4K (16:9) up to 84 fps
8K/4K (17:9) up to 90 fps
8K/4K (2.4:1) up to 112 fps
8K/4K (6:5) up to 72 fps
Built-In NDNo
Battery voltage12V
