MRMC Cinebot NANO

CINEBOT NANO

TRACK

1m/s

PAYLOAD

7kg

HEIGHT

1.3m

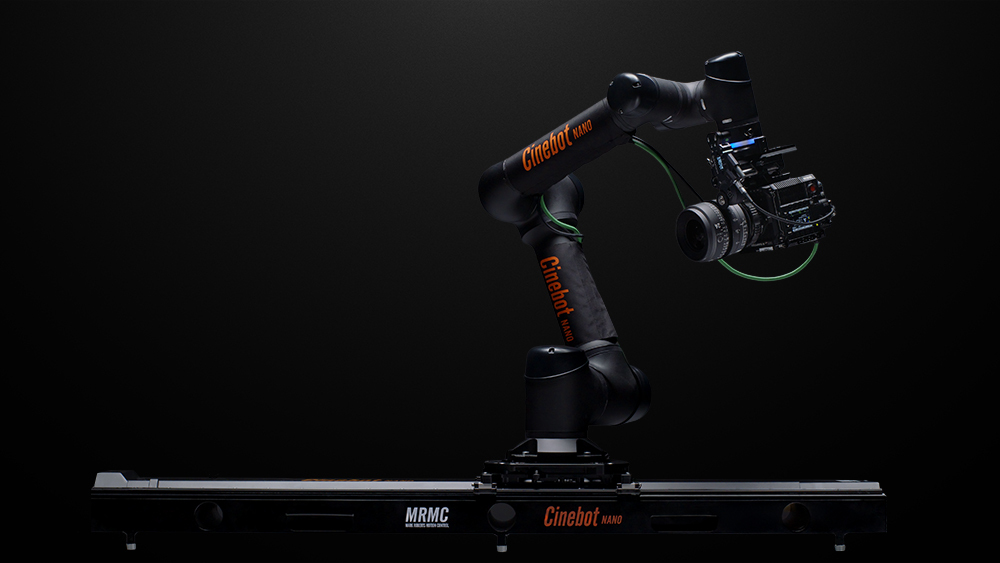

CINEBOT NANO is the most compact robot in the Cinebot lineup, built for professional live-action filming on location or in the studio. Operators have the flexibility to craft movements manually using PushMoco® or choose enhanced precision with Flair. Its small footprint brings repeatable, precise motion control to the places larger rigs simply can't fit— tight spaces, tabletop work, and inverted setups. The complete system packs into three cases, ready for any location.


Rental Rates

: $1900 + HST

Package includes:

- Cinebot NANO on 5ft Slider Tracks

- Delivery to set included in the cost of the rental!

- Additional Operator Fees apply, please inquire!


Cinebot NANO Spec Sheet


Operating Envelope
Max Reach (from rotate centre)
1m / 3'2"
Height From Base
1.3m / 4'3"
Lowest Position
-0.58m / -1'11"
Rig Performance
Arm ARC Move
3.2 m/s max speed at camera
Arm Combined with Track
4.2 m/s max speed at camera
Track
1 m/s (1.45m length)
Base Rotation
±360°, 200°/s
Shoulder Lift
±360°, 200°/s
Elbow
±160°, 225°/s
Pan
±360°, 225°/s
Tilt
±360°, 225°/s
Roll
±360°, 225°/s
Dimensions
Arm Length
1m / 3'2"
Track Length
1.45m / 5'
Track Width
23.5cm / 9.3" wide
Track Width (with outriggers)
90cm / 35.4" wide
Weights
Arm Weight
25kg / 54 lbs
Track Weight
22kg / 48.5 lbs
Outriggers Weight (Pair)
2kg / 4.5 lbs
Total Weight
49kg / 108 lbs
Maximum Camera Payload
7kg / 15.4 lbs
Power Connection
Power Requirements
110–264 VAC
Average Power Consumption
Less than 150W
