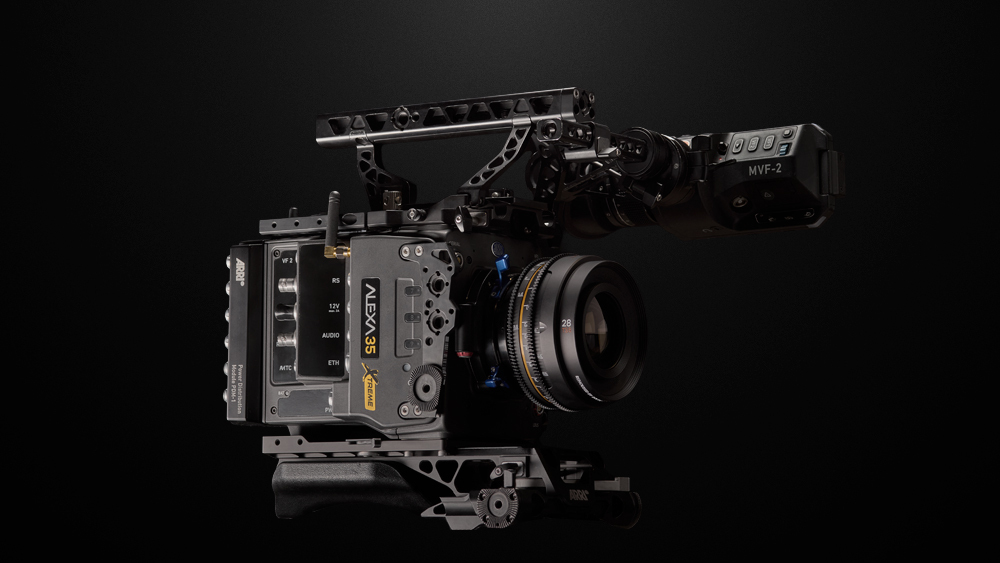

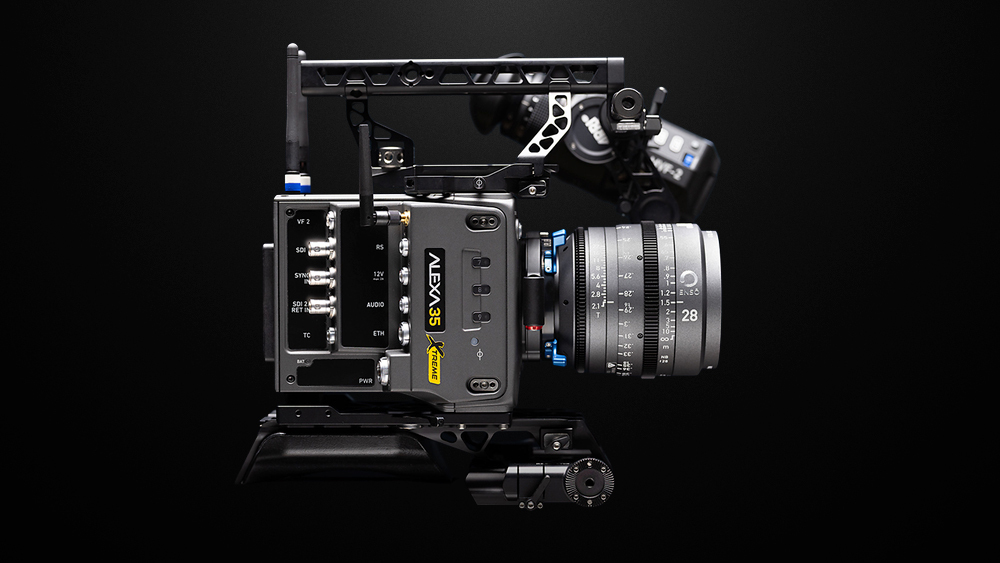

The ARRI ALEXA 35 Xtreme is a high-speed evolution of the ALEXA 35, built around the same Super 35 sensor, REVEAL color science, and 17 stops of dynamic range, but with substantially higher frame rates and longer pre-record times.
It supports frame rates up to 330 fps while retaining the full 17 stops of dynamic range, with a Sensor Overdrive mode enabling up to 660 fps at 11 stops for specialized high-speed work.
Xtreme offers five times longer pre-recording, lower power consumption, improved WiFi capability, and the new ARRICORE codec for lower data rates alongside ARRIRAW and ProRes workflows
*with Sensor Overdrive
| Lens Mount | ARRI LPL |
| Included Lens Mount Adapter | ARRI PL |
| Lens Communication | Yes |
| Sensor Resolution | Not Specified by Manufacturer |
| Sensor Type | Super35 CMOS |
| Pixel Pitch | 6.075 µm |
| Image Stabilization | None |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Internal Filter Holder | No |
| Capture Type | Video Only |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1 Second |
| ISO Sensitivity | 160 to 6400 |
| Shutter Angle | 5 to 356° |
| Advertised Dynamic Range | 17 Stops |
| White Balance | 2000 to 11,000K |
| Raw Recording | ARRIRAW ARRIRAW 4.6K 3:2 Open Gate: 35 / 80 fps ARRIRAW 4.6K 16:9: 45 / 95 fps ARRIRAW 4K 16:9: 55 / 125 fps ARRIRAW 3.8K 16:9: 65 / 140 fps ARRIRAW 3.8K 2.39:1: 85 / 190 fps ARRIRAW 3.3K 6:5 - 3.3K: 55 / 120 fps ARRIRAW 2K 16:9 S16: 230 / 330 fps ARRIRAW HD 16:9 S16: 260 / 330 fps |
| Sensor Crop Modes | Super16 2K (2048 x 1152) |
| Sensor Crop While Recording | 4.6K (4608 x 2592) in 16:9 4K (4096 x 2048) in 2:1 4K (4096 x 2034) in 16:9 4K (4096 x 1716) in 2.39:1 When Recording in Anamorphic 3.8K (3840 x 2160) in 16:9 3.3K (3328 x 2790) in 6:5 3.8K (3840 x 1920) in 2:1 When Recording in Anamorphic 3K (3072 x 3072) in 1:1 2.7K (2743 x 3086) in 8:9 2K (2048 x 1152) in 16:9 1080p (1920 x 1080) in 16:9 |
| Variable Frame Rates | 0.75 - 660 fps* |
| Gamma Curve | ARRI Log C4, Rec 2100 HLG, Rec 2100 PQ, Rec709, Rec2020 |
| Recording Limit | Unlimited |
| Built-In Microphone Type | Stereo |
| Audio Recording | 4-Channel 24-Bit 48 kHz LPCM Audio |
| External Recording Modes | None |
| IP Streaming | None |
| Media/Memory Card Slot | Single Slot: Codex Compact Drive |
| Video I/O | 1 x BNC (12G-SDI) Output 1 x BNC (12G-SDI) Input/Output |
| Audio I/O | 1 x LEMO 6-Pin Line Input 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output |
| Power I/O | 1 x LEMO 8-Pin (20.5 to 33.6 VDC) Input |
| Other I/O | 2 x CoaXPress Viewfinder 1 x LEMO 4-Pin Control Input/Output 1 x LEMO 4-Pin (Serial) Data Input/Output 1 x LEMO 5-Pin (Timecode) Input/Output 1 x LEMO 10-Pin (Ethernet) Control 1 x BNC (Sync) Input/Output 1 x USB Type-C Data Input/Output 1 x Pogo 5-Pin 1 x pogo 18-Pin |
| Wireless | Wi-Fi (802.11b/g) Control |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Size | 4" |
| Resolution | 800 x 400 |
| Display Type | Included External LCD |
| Secondary Display | Side: LCD Status Display |
| Type | Removable Electronic (OLED) |
| Resolution | 1920 x 1080 |
| Focus Type | Manual Focus Only |
| Operating Temperature | 12 to 77°F / -20 to 45°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Power Consumption | 90 W |
| Tripod Mounting Thread | 1/4"-20 Female 3/8"-16 Female |
| Material of Construction | Aluminum |
| Dimensions (W x H x D) | 8 x 6 x 5.8" / 203 x 152.5 x 147 mm |
| Weight | 6.4 lb / 2.9 kg |
| Sensor Type | Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern colour filter array |
| Sensor Maximum Number of Photosites and Size | 4608 x 3164 27.99 x 19.22 mm / 1.102x 0.757" Ø 33.96 mm / 1.337" |
| Recording File Container Size (pixel) | 4.6K 3:2 Open Gate: 4.6K (4608 x 3164) 4.6K 16:9: 4.6K (4608 x 2592), 4K (4096 x 2304) 4K 16:9: 4K (4096 x 2304), UHD (3840 x 2160), 2K (2048 x 1152), HD (1920 x 1080) 4K 2:1: 4K (4096 x 2048) 3.3K 6:5: 3.3K (3328 x 2790), 4K (4096 x 1716) 3K 1:1: 3K (3072 x 3072), 3.8K (3840 x 1920) 2.7K 8:9: UHD (3840 x 2160) 2K 16:9 S16: 2K (2048 x 1152) |
| Dynamic Range | 17 stops |
| Exposure Index | Adjustable from EI 160 - 6400 in 1/3 stops |
| Recording Formats | MXF/ARRIRAW MXF/ARRICORE MXF/Apple ProRes 4444 XQ MXF/Apple ProRes 4444 MXF/Apple ProRes 422 HQ |
| Recording Frame Rates | ARRIRAW 4.6K 3:2 Open Gate: 35 / 80 fps ARRIRAW 4.6K 16:9: 45 / 95 fps ARRIRAW 4K 16:9: 55 / 125 fps ARRIRAW 3.8K 16:9: 65 / 140 fps ARRIRAW 3.8K 2.39:1: 85 / 190 fps ARRIRAW 3.3K 6:5 - 3.3K: 55 / 120 fps ARRIRAW 2K 16:9 S16: 230 / 330 fps ARRIRAW HD 16:9 S16: 260 / 330 fps ARRICORE 4.6K 3:2 Open Gate: 80 / 120 - 80* / 165* fps ARRICORE 4.6K 16:9: 100 / 150 / - 100* / 200* fps ARRICORE 4K 16:9: 125 / 150 - 125* / 210* fps ARRICORE 3.8K 16:9: 145 / 150 - 145* / 240* fps ARRICORE 3.8K 2.39:1: 195 / 240 - 195* / 240* fps ARRICORE 3.3K 6:5 - 3.3K: 120 / 120 - 125* / 210* fps ARRICORE 2K 16:9 S16: 330 / 330 - 505* / 660* fps ARRICORE HD 16:9 S16: 330 / 330 - 590* / 660* fps Apple ProRes 4444 4.6K 3:2 Open Gate: 90 / 120 fps Apple ProRes 4444 4.6K 16:9: 110 / 150 fps Apple ProRes 4444 4K 16:9: 135 / 150 fps Apple ProRes 4444 3.8K 16:9: 150 / 150 fps Apple ProRes 4444 3.8K 2.39:1: 210 / 240 fps Apple ProRes 4444W 3.3K 6:5 - 3.3K: 120 / 120 fps Apple ProRes 4444 2K 16:9 S16: 330 / 330 fps Apple ProRes 4444 HD 16:9 S16: 330 / 330 fps Compact Drive 1TB / 2TB |
| Colour Output | Rec 709 Rec 2020 Rec 2100 PQ Rec 2100 HLG LogC4 Custom Look (ARRI Look File ALF-4) |
| Weight | 6.4 lbs (camera body with three antennas and LPL Mount |
| Measurements (HxWxL) | 147 x 152.5 x 203 mm / 5.8 x 6.0 x 8.0" (camera body with LPL lens mount) |
| Operating Temperature | -20° C to +45° C / -4° F to +113° F @ 95% relative humidity max, non-condensing, splash and dust proof through sealed electronics, IP 51 |
*with Sensor Overdrive
