MRMC Bolt-X

BOLT-X

CAMERA

max 14m/s

PAYLOAD

20kg

MAX HEIGHT

4.3m

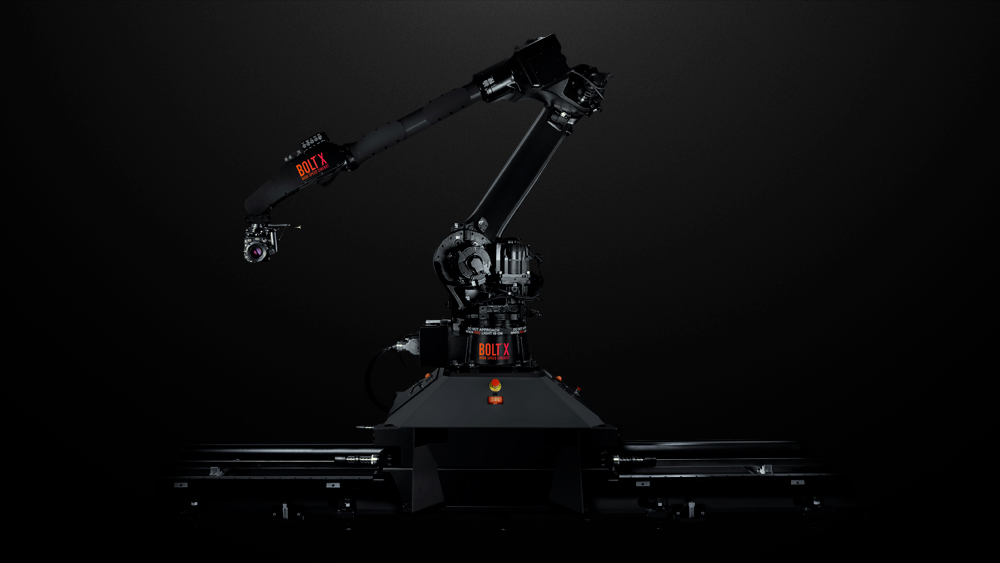

The Bolt-X is MRMC's longest-reaching, fastest high-speed cinebot — a 3.2m arm reach and 4.3m max height built for the biggest shots in studio or on location.

Mounted on track, it hits up to 14m/s while carrying a 20kg payload, delivering high-speed tracking shots no handheld or dolly setup can match.

From commercials and music videos to film and TV, the Bolt-X gives directors and DPs total creative freedom to move fast without sacrificing precision.

Every move is programmed and repeatable through Flair, MRMC's industry-standard motion control software — lock a complex shot once, replay it perfectly take after take.

Shoot Day: $6850 +HST

Program Day: $3400 +HST

10' Track lengths: $500/each

Delivery fee within ACCP Boundary: $900

Requires Operator + Technician

For all information and inquiries please email rentals@2dhouse.com


Operating Envelope
Max Height (On Track)
4.3m / 14'1"
Max Reach (from rotate centre)
3.2m / 10'5"
Lowest Position
-1.3m / -4'2"
Rig Performance
Arm ARC Move
10 m/s max speed at camera
Arm with Track
14 m/s max speed at camera
Track
4 m/s max speed at camera
Rotate
±180° range of travel @ 180°/s
Lift
+135° to -90° range of travel @ 180°/s
Arm
+206° to -80° range of travel @ 180°/s
Pan
±200° range of travel @ 400°/s
Tilt
±150° range of travel @ 430°/s
Roll
±455° range of travel @ 630°/s
Shooting Speeds
Vertical
9.6 m/s on arc of radius 3.1m
Horizontal
9.7 m/s on arc of radius 3.1m
Rig Weights & Payload
Bolt X Rig (robot only)
560kg / 1,235 lbs
Pedestal
372kg / 820 lbs
Max Payload
20kg
