The Preston Light Ranger 2 is a focus assist system designed to help focus pullers judge distance quickly and accurately on modern high-resolution productions. Using an infrared measuring system with 16 simultaneous distance zones, it overlays scene depth information directly onto the monitor, allowing the assistant to evaluate focus across the frame without looking away from the image. The on-screen overlay works in relation to the current HU4 focus setting, giving immediate visual feedback on whether subjects are closer, farther, or within depth of field. It is especially useful for crane, dolly, vehicle, Steadicam, low-light, and shallow depth-of-field work where maintaining critical focus is more demanding.
Noteworthy Attributes

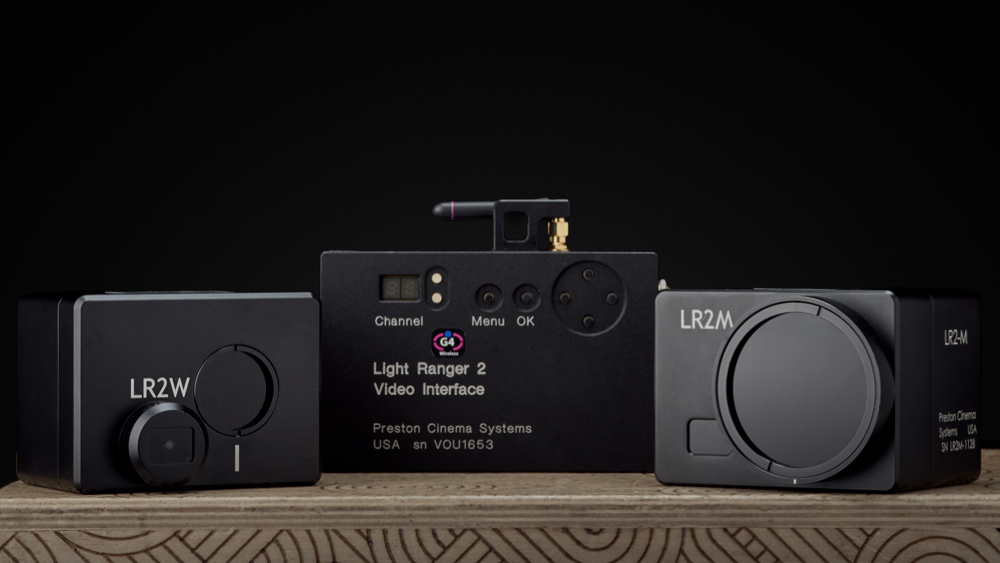

Available with LR2M or LR2W sensor options.
LR2M features a 20° field of view for mid to long focal length lenses.
LR2W features a 50° field of view for short to mid focal length lenses.
Measures distance across 16 detection zones for detailed focus information across the frame.
Video Interface Unit overlays focus and distance data onto the HD-SDI image.
Supports both manual focus assist and autofocus operation within the Preston ecosystem.
