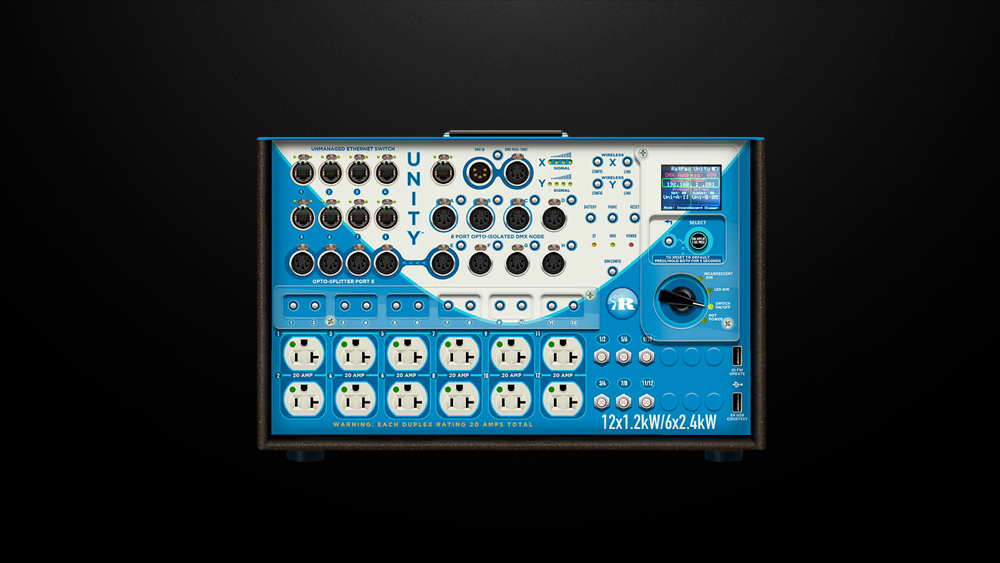

RATPAC UNITY 12X1.2KW / 6X2.4KW DIMMER & DMX CONTROL

The All In One Solution. Today’s entertainment productions require more and more data on set as smart lights are evolving rapidly with higher channel counts and more universes of DMX being required. RatPac’s Unity stands alone as an all-in-one solution as a dimmer (at 1.2k or 2.4k), switchable power source, opto-splitter and unmanaged switch. 11 universes of DMX output in all.

All features configurable via onboard user interface display or web-based GUI. Internal rechargeable battery allows configuration without external power. Four-position rotary switch enables quick mode changes globally or on individual channels. USB firmware updates via integrated USB port.

• ETHERNET ENABLED, COMPATIBLE WITH ART-NET OR sACN 9 PORT INTEGRATED GIGABIT ETHERNET SWITCH
• ETHERNET STATUS & SPEED LED INDICATORS PER ETHERNET PORT
• 8 UNIVERSE DMX NODE, WITH 8 INDIVIDUALLY CONFIGURABLE XLR OUTPUT PORTS WITH SEPARATE UNIVERSES AND CAPABILITY
• 4 PORT OPTOSPLITTERS CONTROLLED BY PORT E
• 12 XLR PORTS IN ALL PLUS DMX PASS THROUGH 2 UNIVERSES OF CRMX WIRELESS, TX OR RX SELF-TERMINATING DMX
• WITH STATUS QUO FOR ALL XLR OUTPUTS
• GHOST LOAD FEATURE FOR PROBLEMATIC FIXTURES SUCH AS DIMMABLE LEDS AND LOW WATTAGE INCANDESCENTS SELECTABLE
